Home > Product > Cleaning Drone > SC05

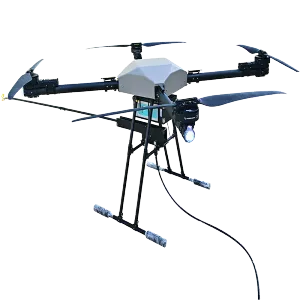

SC05
18~29mins long duration time
40 meters flight height
3000 psi (206bar/20.6Mpa) high pressure
16 L/min high output flow
1400 m² cleaning efficiency per hour
Automatic route operation
Net weight (withbattery)

10KG

Battery weight

3KG

Maximum take-off weight

15KG

Payload

5KG

Fly height

40m

Fly time

18mins (40m flight height)

29mins (5m flight height)

Water pump pressure

3000psi (20.6Mpa /206bar)

Water pump flow

16L/min

Cleaning efficiency

1400㎡/h

Spray speed

1m/s

Cleaning span

1000mm(MAX)

Climbing speed

3m/s

Battery model

6S 16000mAh*2

Charging time

30-40mins (220V voltage)

Maximum tolerable wind speed

10m/s

Motor model

X6Plus

propeller model

2480

Spray boom angle

 0°/45°/90°

Spray nozzle angle

0°/15°/25°/40°

Water pipe size

1/4"

G12 remote control frequency

2.4GHz

Drone Size

W1.1m x L1.1m x H0.75m  (spread size)

W0.6m x L0.6m x H0.75m  (fold size)


How Do Cleaning Drones Improve Urban Sanitation Efficiency?

Introduction

Urban sanitation plays a crucial role in maintaining public health, environmental sustainability, and the overall quality of life in cities. However, traditional sanitation methods face significant challenges, including labor intensity, accessibility issues, and environmental concerns. The emergence of cleaning drones introduces a transformative solution to urban sanitation, promising improved efficiency, safety, and sustainability. This article explores how cleaning drones enhance urban sanitation efficiency, their technology, applications, benefits, and future prospects.


1. Challenges in Traditional Urban Sanitation

1.1 Labor-Intensive and Time-Consuming

Manual cleaning of streets, walls, windows, and public spaces requires significant human labor and time, often resulting in inconsistent cleaning quality.

1.2 Accessibility Issues

High-rise buildings, narrow alleys, and hazardous areas present difficulties for sanitation workers, limiting the scope and effectiveness of cleaning.

1.3 Environmental and Safety Concerns

Use of excessive water, chemicals, and the risk of accidents affect the sustainability and safety of traditional cleaning methods.


2. What Are Cleaning Drones?

Cleaning drones are unmanned aerial vehicles (UAVs) equipped with specialized cleaning equipment such as spraying nozzles, brushes, and vacuum systems. These drones can operate autonomously or be remotely controlled to clean hard-to-reach urban surfaces like building facades, windows, solar panels, and public infrastructures.


3. Technologies Behind Cleaning Drones

3.1 Advanced Navigation Systems

GPS and AI-powered obstacle avoidance allow drones to navigate complex urban environments efficiently.

3.2 High-Precision Spraying and Cleaning Mechanisms

Equipped with water-efficient nozzles and brushes, cleaning drones apply cleaning agents precisely, minimizing waste.

3.3 Real-Time Monitoring and Data Collection

Integrated sensors and cameras enable drones to capture live data, assess cleaning quality, and report maintenance needs.


4. How Cleaning Drones Improve Urban Sanitation Efficiency

4.1 Expanding Reach to Difficult Areas

Drones can easily access high-rise buildings, rooftops, and narrow spaces where manual cleaning is dangerous or impossible.

4.2 Reducing Labor Costs and Time

Automation reduces the need for extensive human labor, accelerates cleaning cycles, and allows for frequent cleaning schedules.

4.3 Enhancing Cleaning Precision and Quality

AI control and precise equipment enable consistent and thorough cleaning, reducing missed spots and improving aesthetics.

4.4 Promoting Environmental Sustainability

Targeted spraying reduces water and chemical usage, minimizing environmental impact compared to conventional methods.

4.5 Increasing Worker Safety

By handling hazardous tasks, drones reduce exposure to risks such as falls, toxic chemicals, or extreme weather.


5. Practical Applications in Urban Environments

5.1 High-Rise Window and Facade Cleaning

Replacing scaffolding and rope access, drones clean glass and concrete surfaces efficiently.

5.2 Public Space and Street Cleaning

Drones can spray disinfectants and clean pavements in public parks and plazas.

5.3 Solar Panel Maintenance

Cleaning drones maintain solar farms and rooftop panels, optimizing energy efficiency.

5.4 Graffiti and Stain Removal

Precision cleaning drones target stains without damaging delicate surfaces.


6. Case Studies and Industry Adoption

Discuss examples of cities or companies adopting cleaning drone technology and the measurable impact on sanitation efficiency.


7. Challenges and Future Development

7.1 Regulatory and Airspace Management

Navigating urban airspace safely requires regulatory compliance and coordination.

7.2 Technical Limitations

Battery life, payload capacity, and weather resistance are current challenges to address.

7.3 Integration with Smart City Infrastructure

Future improvements may include integration with IoT and AI systems for smarter sanitation management.


Conclusion

Cleaning drones represent a revolutionary advancement in urban sanitation, improving efficiency through automation, enhanced safety, environmental sustainability, and precise cleaning capabilities. As technology matures and regulatory frameworks evolve, cleaning drones are poised to become indispensable tools for modern cities aiming for cleaner, healthier, and safer urban environments.
